This page has gathered all information about our HomecCockpit touchpanels.
Decide on your' tailor-made touchpanel solution.


HomeCockpit Excelsior V6 PLUSHomeCockpit
Excelsior V6		HomeCockpit
Major V5		HomeCockpit
Levior V3
Measurements
 HomeCockpit 104 (10,4")
 HomeCockpit 150 (15,0")
 HomeCockpit 185 (18,5")
 HomeCockpit 215 (21,5")		W x H
295 x 242 mm
387 x 311 mm
493 x 313 mm
558 x 349 mm

Mounting / distance to wall
 Standard installation
 Flush mounting
 Wallmount installation


12 mm
0 mm
54 mm
12 mm
0 mm
-
Resolution
 HomeCockpit 104 (4:3)
 HomeCockpit 150 (4:3)
 HomeCockpit 185 (16:9)
 HomeCockpit 215 (16:9)


1024 x 768 px
1024 x 768 px
1920 x 1080 px
1920 x 1080 px

Frame color
black / white
Hard drive storage
240 Gb120 Gb120 Gb120 Gb
Main memory16 Gb8 Gb8 Gb4 Gb
Processor

i5-8265U
Quad Core

J3455
Quad Core
Interface

4x USB 3.1
1xUSB 3.1 Type-C
2x RJ45 LAN
1x HDMI
1x DisplayPort
1x 3,5mm Audio

4x USB 3.0

2x RJ45 LAN
2x HDMI
1x COM port
1x 3,5mm Audio

Operating system
Win 10 LTSC
Performance★★★★★★★★★☆

★☆

Microphone / Speakers+++-
Additional Equipment
 Voice Performance brick
 Camera brick
 Presence detector brick
 Backup Recovery Stick
+
+
+
+


+
+
+
+


+
+
+
+
-
-
-
+




Download

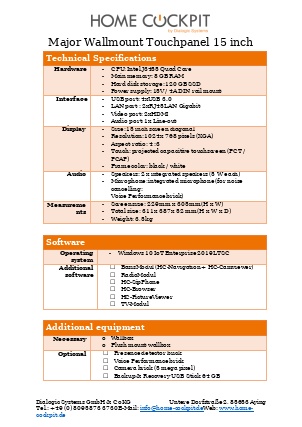

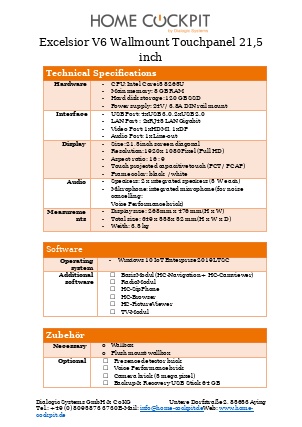

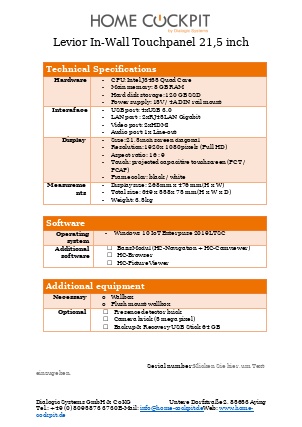

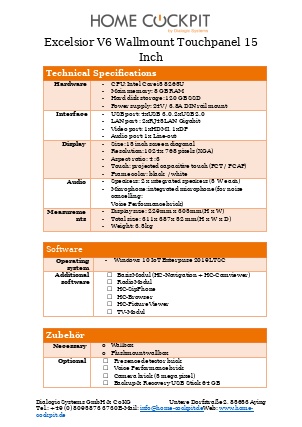

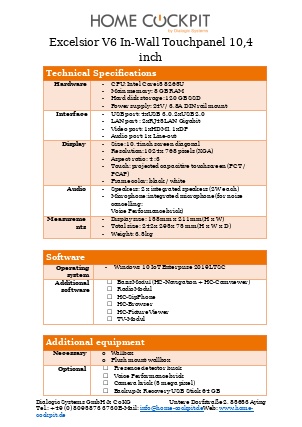

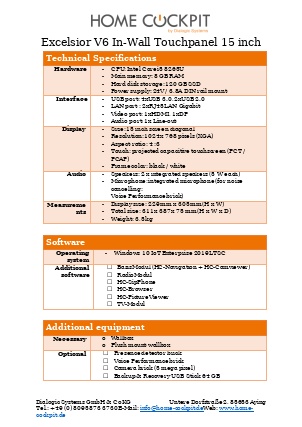

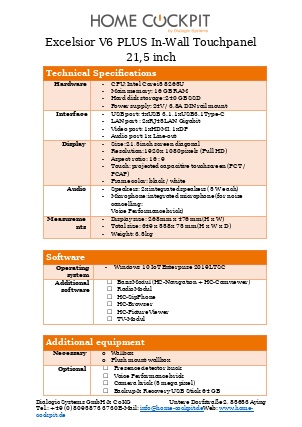

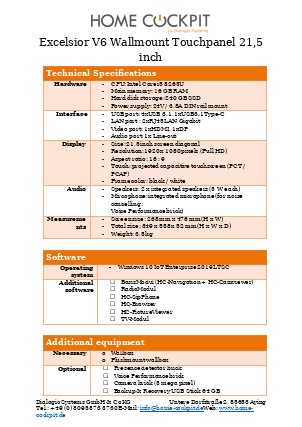

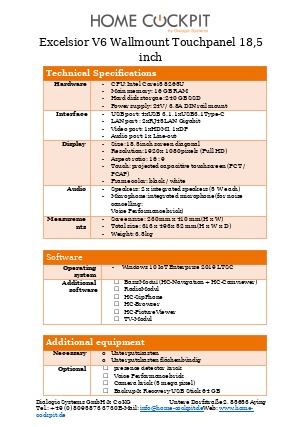

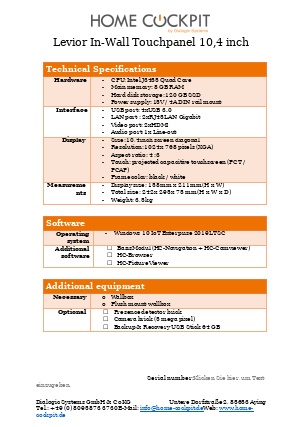

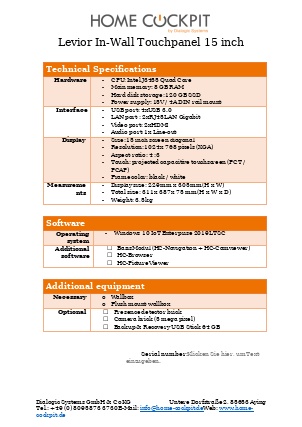

This section provides data sheets for all possible hardware configurations. Click the desired data sheet to download the .pdf file.
These data sheets can be used to keep track on which touchpanels you have / manage. Simply put in the serial number and additional equipment.


10,4"15"18,5"21,5"
Levior


Major

Excelsior

Excelsior PLUS

Wallmount Major-

Wallmount Excelsior-

Wallmount Excelsior PLUS-
