This page provides all relevant information regarding HomeCockpit Wallmount Touchpanels.
Performance Levels
HomeCockpit offers different levels of performance to perfectly adapt to every field of application.
Major
Specification:
CPU: Intel J3455 Quad Core
Mainmemory: 4 GB RAM
Hard disk: 120 GB SSD
Operating system: Windows 10 IoT Enterprise 2019 LTSC
2x integraded speakers (2W each) / mircophone
Fanless convection cooling
Interface:
USB port: 4 x USB 3.0
LAN port: 2 x RJ45 LAN Gigabit
Video port: 2 x HDMI
Audio port: 1 x Line-out
Power-supply: DIN rail power brick 15V / 4A
Excelsior
Specification:
CPU: Intel Core i5 8365U
Main memory: 8 GB RAM
Hard disk: 120 GB SSD
Operating system: Windows 10 IoT Enterprise 2019 LTSC
2x integraded speakers (2W each) / mircophone
Fanless convection cooling
Interface:
USB port: 4x USB 3.1, 1x USB 3.1 Type-C
LAN port : 2x RJ45 LAN Gigabit
Video port: 1x HDMI, 1x DP
Audio port: 1x Line-out
Power-supply: DIN rail power brick 24V / 3,8A
Excelsior-PLUS
Specification:
CPU: Intel Core i5 8365U
Main memory: 16 GB RAM
Hard disk: 240 GB SSD
Operating system: Windows 10 IoT Enterprise 2019 LTSC
2x integraded speakers (2W each) / mircophone
Fanless convection cooling
Interface:
USB port: 4x USB 3.1, 1x USB 3.1 Type-C
LAN port : 2x RJ45 LAN Gigabit
Video port: 1x HDMI, 1x DP
Audio port: 1x Line-out
Power-supply: DIN rail power brick 24V / 3,8A
Display options
There are four different sizes of displays available which offers the perfect size for every field of application.
All of the panels' touchscreens use capacitive multitouch technology. That means: No need for pressure. Simply touching the surface of the display with up to 10 fingers at once provides a very smooth and intuitive control.
Compared to resistive touchscreens our capacitive ones are less prone to scratches and allow more precise control of the screen.

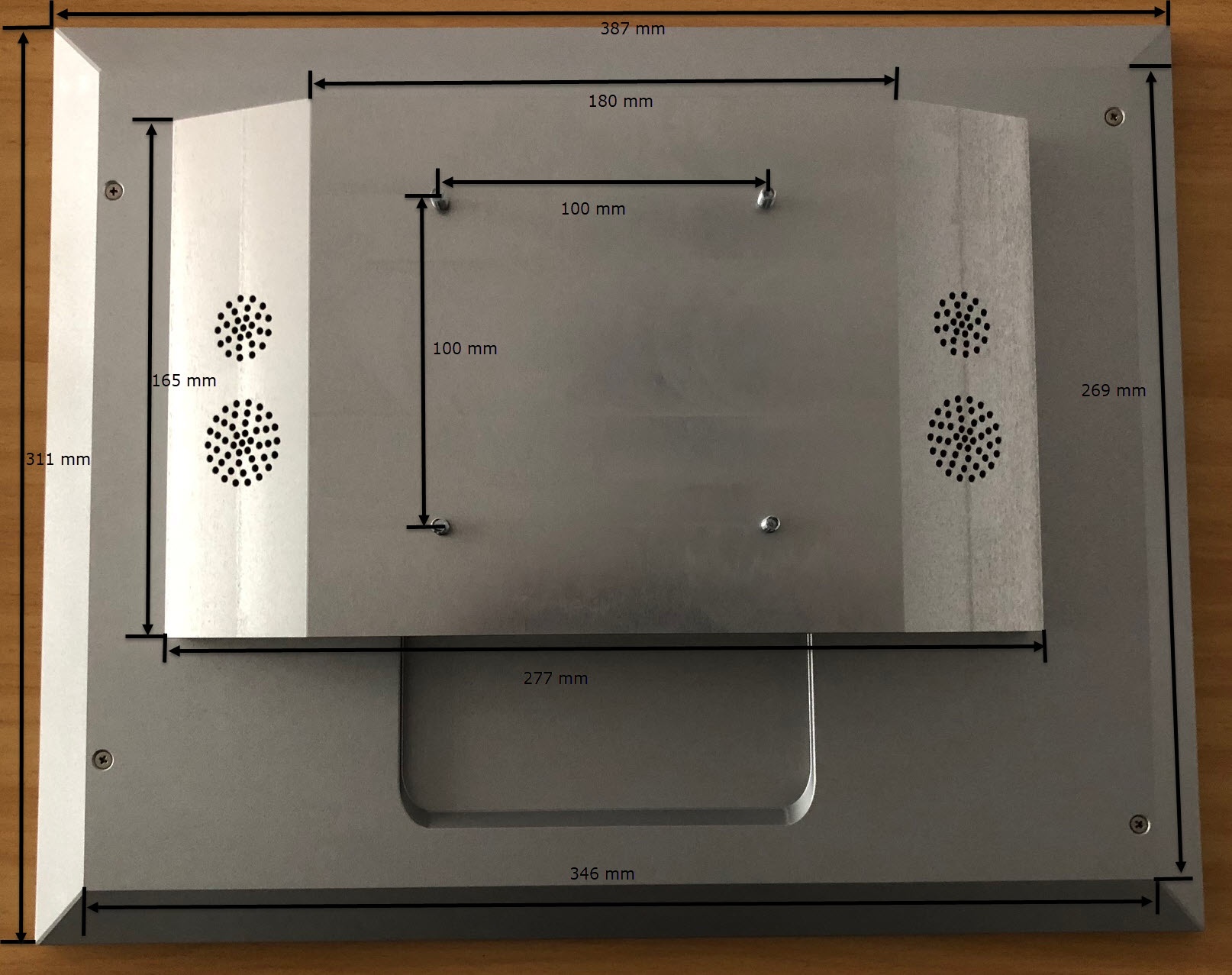

15"
Color: black / white
Resolution: 1024 x 768 Pixel
Measurements: 387 x 311 x 75 mm
(Click to expand)

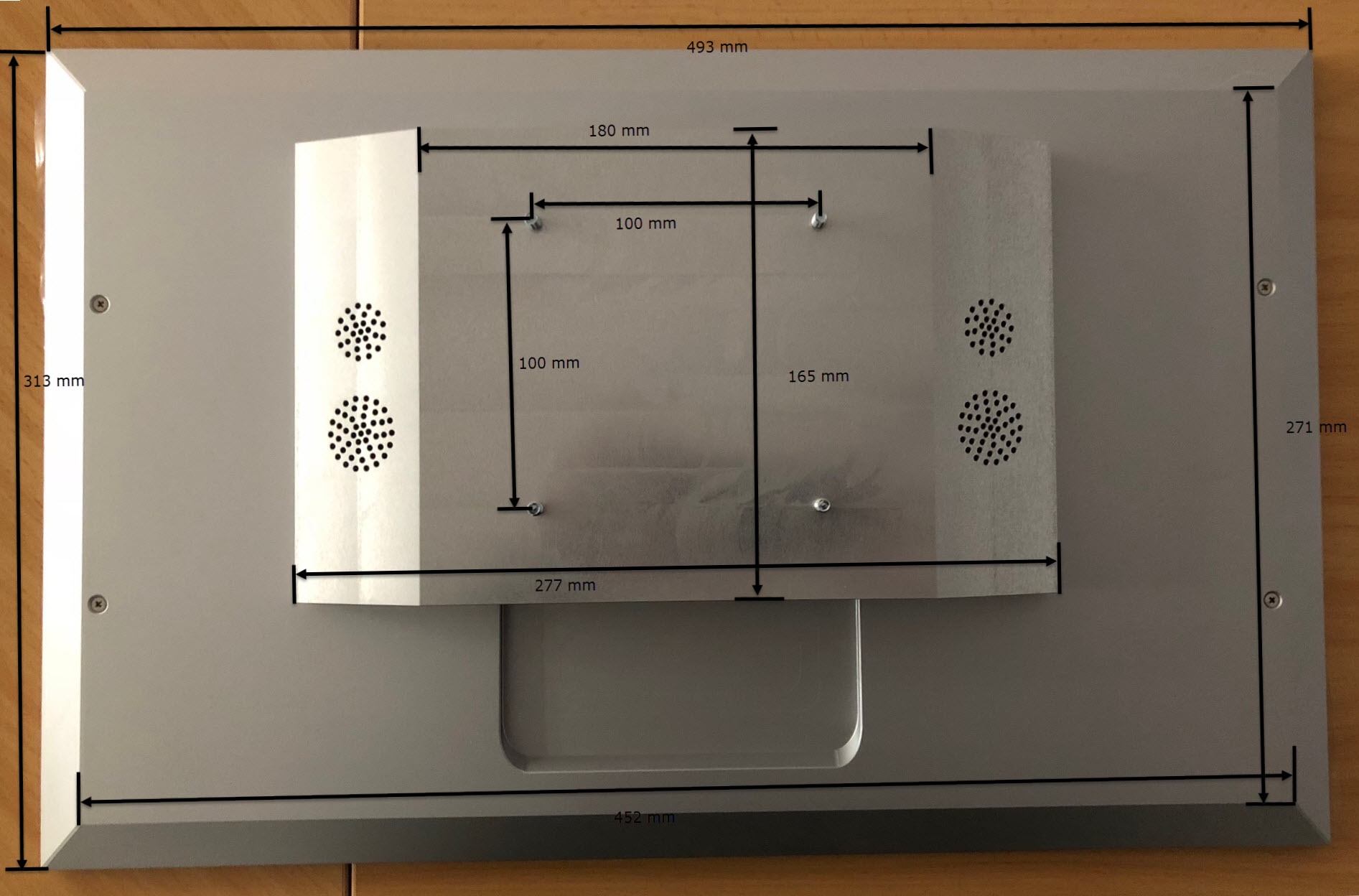

18,5"
Color: black / white
Resolution: 1920 x 1080 Pixel
Measurements: 493 x 313 x 75 mm
(Click to expand)

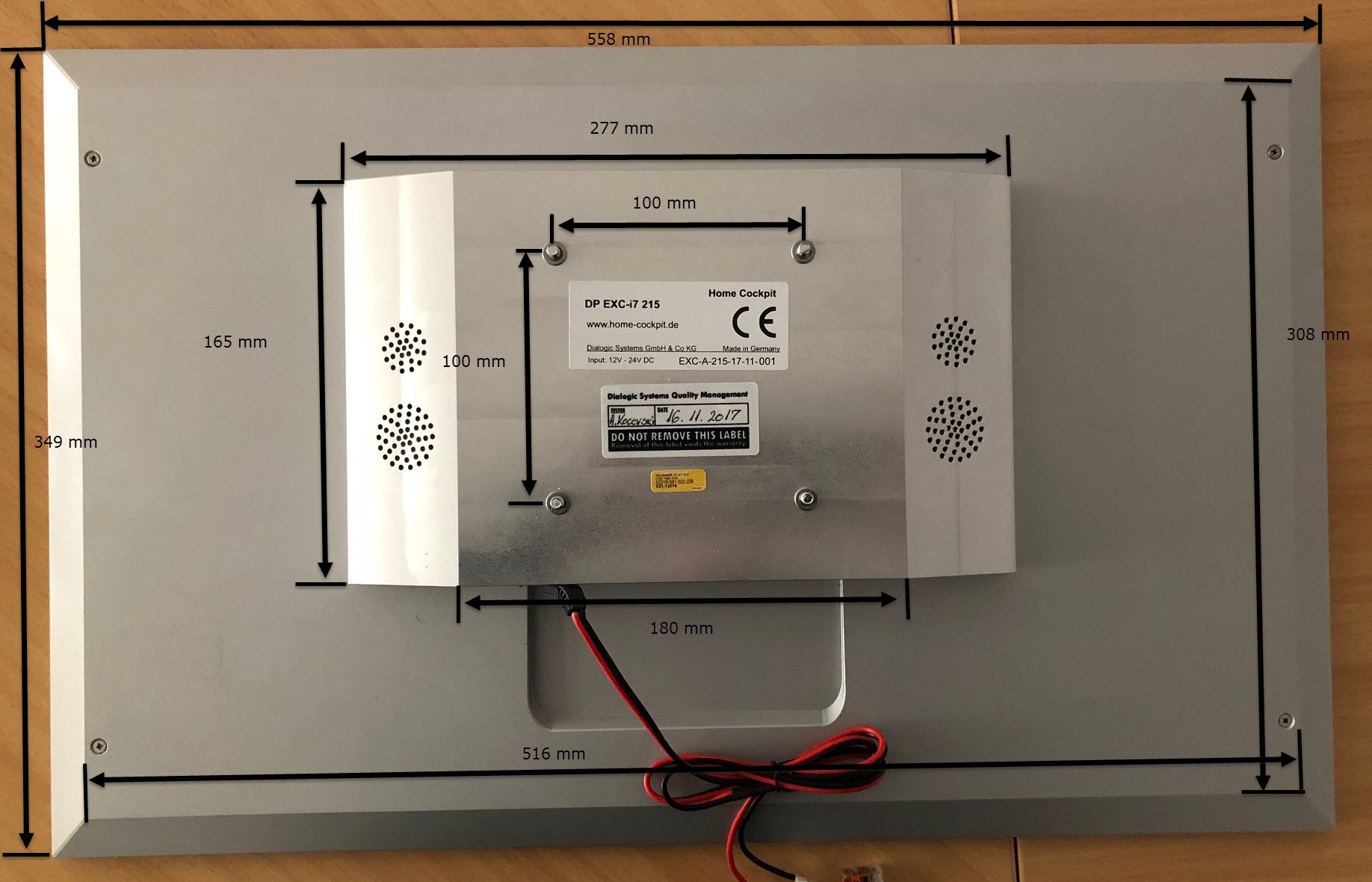

21,5"
Color: black / white
Resolution: 1920 x 1080 Pixel
Mesurements: 558 x 349 x 75 mm
(Click to expand)

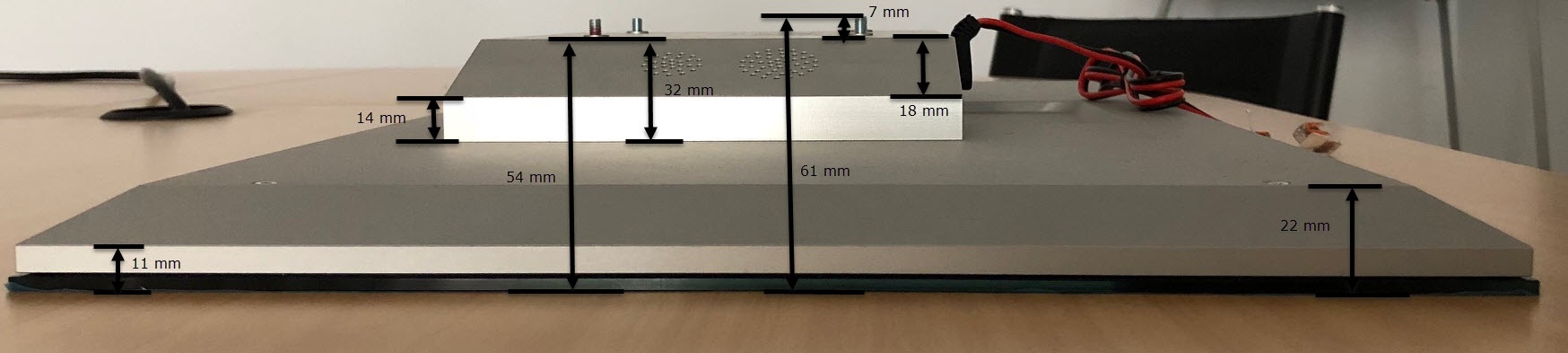

Profile measurements:
(Click to expand)
Special equipment
Equip your' HomeCockpit Touchpanel with our special building blocks for improving user experience even further.
Following options are available:
Voice-Performance Brick
Our HomeCockpit Voice-Performance brick enables crystal clear audio recording which drastically improves intercom functionality. Accoustic feedback and background noise are reduced almost completely when this additional hardware module is installed.
Presence Detector Brick
The Presence Detector Brick enables the system to execute different actions whenever someone enters / is present the room the touchpanel is located in. It enables functions like display activation or pushing UDP, TCP and KNXnet IP telegrams.
Camera Brick
Extend your' HomeCockpit Touchpanel with the 5MP Camera Brick to make video calls with your' loved ones or at work.
